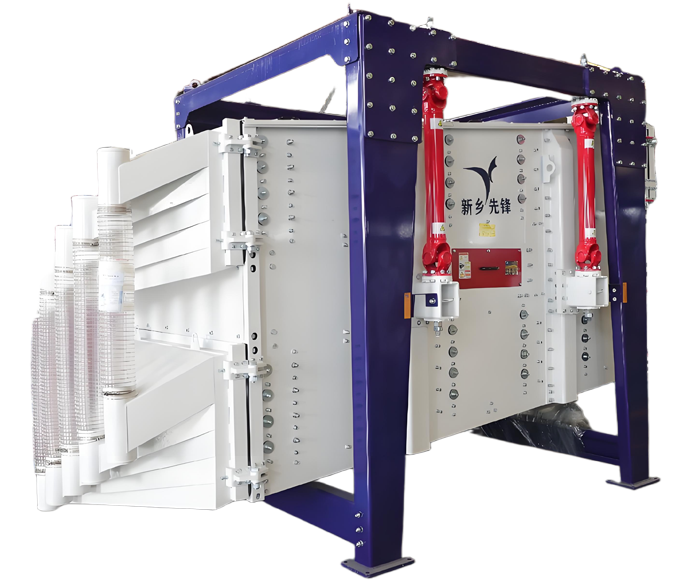

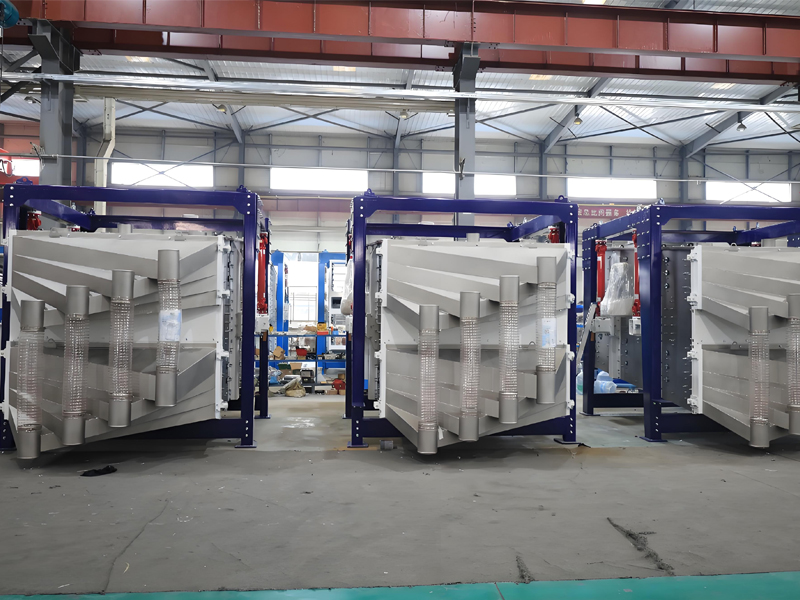

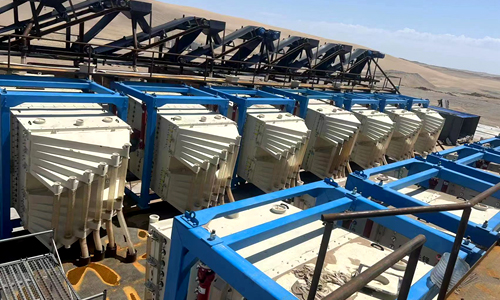

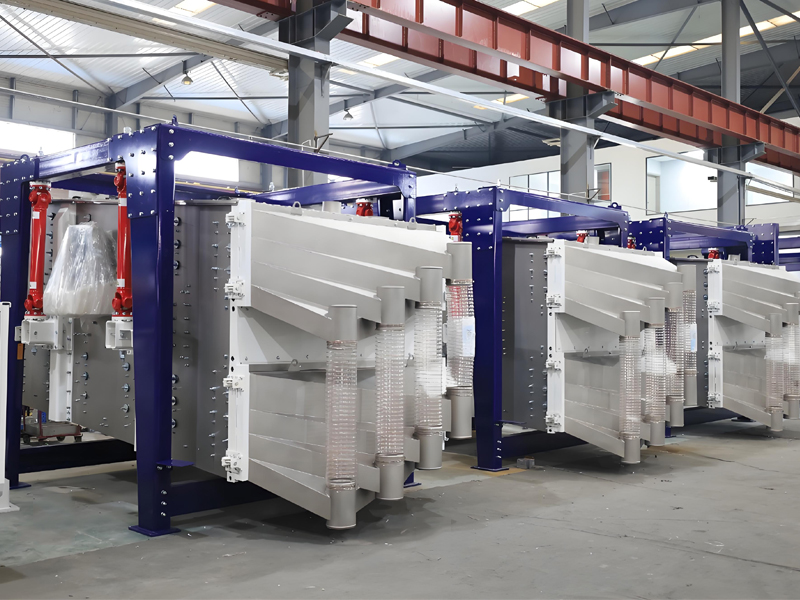

Fracturing sand square swing screening machine is widely used in multiple stages of petroleum extraction. After the completion of the oil well, the fracturing sand square swing screen can screen out sand particles and impurities in the fracturing fluid, making the quality of the fracturing fluid better and improving the fracturing effect. Secondly, the fracturing sand square swing screen can perform secondary screening on crude oil with high sediment content during the production process of oil wells, protecting the normal operation of transportation pipelines and petroleum equipment. In addition, the fracturing sand square swing screen can also be used for solid-liquid separation in oilfield wastewater treatment, separating sand particles and impurities from the wastewater and purifying water quality.
The reciprocating rotary motion method quickly disperses and screens materials.
Adopting a soft swinging form for screening, there is no high-frequency vibration, which can effectively prevent the original state of Baohua material particles from being damaged.
Screen within 0.3mm-200 mesh, with a screen surface inclination angle of 0-5 °. The output of a single machine can reach 60 tons per hour.
Multi layer design with 1-5 layers (up to 10 layers for duplex), allowing for the acquisition of multiple specifications of finished products at once.
Each layer of the screen has a screen anti clogging cleaning device, and the screening machine continuously cleans the screen during operation to ensure that the screen does not clog the holes and extend the operating cycle.
Fully enclosed structure, no dust flying.

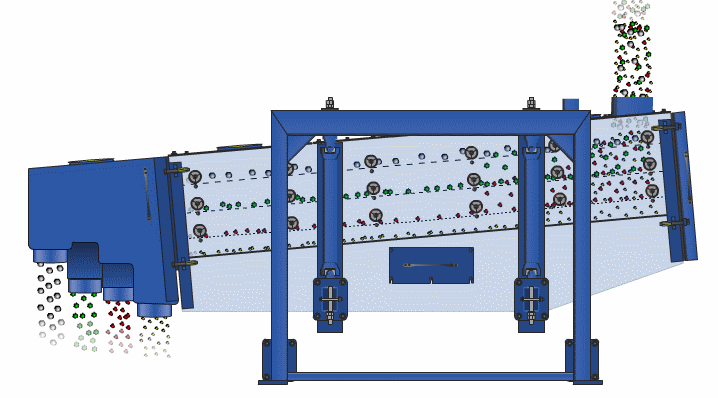

After the rectangular swing screen is started, the shaking body of the screen machine, namely the screen box, moves back and forth under the action of inertia force. The screen box drives the screen surface to shake periodically, forcing the materials on the screen box to perform directional jumping motion together with the screen box. During this period, materials smaller than the screen surface aperture fall to the lower layer through the screen aperture, becoming undersized materials. Materials larger than the screen surface aperture continue to roll and jump motion before being discharged from the discharge port, thus completing the screening work.
Equipment model (single feed) | Effective screening area（㎡） | power（KW） | Screen inclination angle（°） | number of layers | Cyclotron frequency（r/min） | Screening box travel |
XFYBS1030 | 3 | 3 | 5-8 | 1-5 | 180-260 | 25-60 |
XFYBS1036 | 3.6 | |||||
XFYBS1230 | 3.6 | 4 | ||||
XFYBS1236 | 4.32 | |||||
XFYBS1530 | 4.5 | 5.5 | ||||
XFYBS1536 | 5.4 | |||||
XFYBS1830 | 5.4 | 7.5 | ||||
XFYBS1836 | 6.48 | |||||
XFYBS2030 | 6 | |||||
XFYBS2036 | 7.2 | |||||
Equipment model (dual feed) | Effective screening area（㎡） | power（KW） | Screen inclination angle（°） | number of layers | Cyclotron frequency（r/min） | Screening box travel |
XFYBS1536-6S | 5.4 | 5.5 | 5-8 | 6 | 180-260 | 25-60 |
XFYBS1536-8S | 8 | |||||
XFYBS1836-6S | 6.48 | 7.5 | 6 | |||
XFYBS1836-8S | 8 | |||||
XFYBS1836-10S | 10 | |||||
XFYBS2036-6S | 7.2 | 6 | ||||
XFYBS2036-8S | 8 | |||||
XFYBS2036-10S | 11 | 10 |
Scope of application: Building materials, mineral processing, metallurgy, chemical industry, abrasives and grinding tools, food and other industries
Applicable materials: dry powder mortar, machine-made sand, natural sand, quartz sand, perlite, dolomite, calcite, potassium feldspar and other various stone powders and mineral powders; Classification of industries such as metallurgy, metal powder, mineral powder, food, sugar, salt, abrasives, feed, etc
Industrial salt
Metal powder
Quartz sand
Perlite
abrasive
machine-made sand
mineral powder
White sugar
food additives
salt
